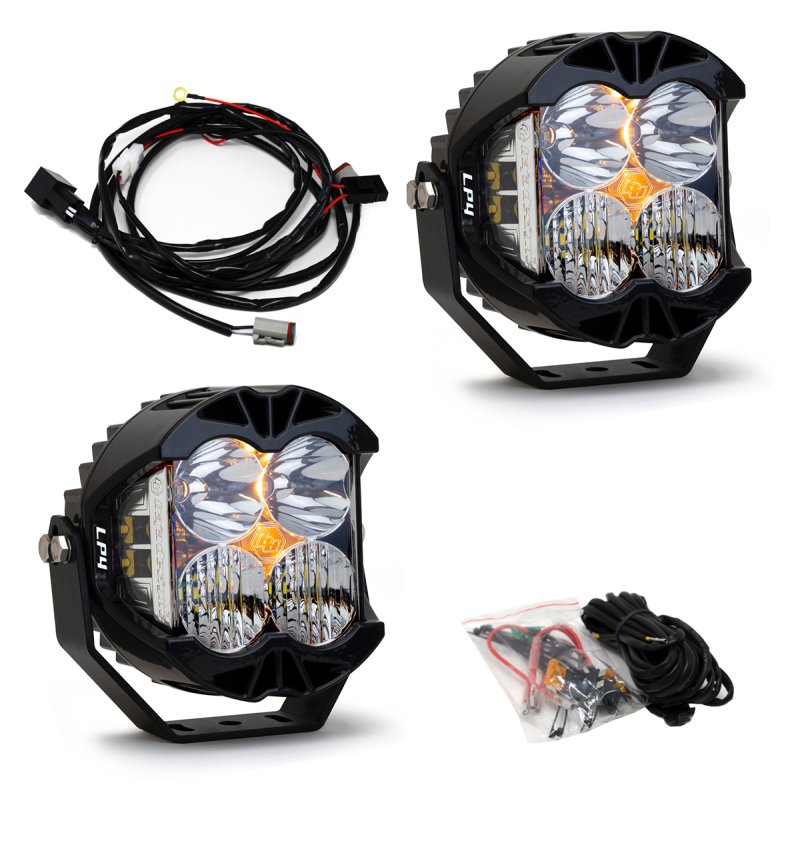

Baja Designs Jeep JL/JT Rubicon Steel Bumper LED Light Kit LP4 w/Upfitter
Couldn't load pickup availability
- Fully secure checkout
- Trusted by thousands
- 0% Financing Available*
Baja Designs Jeep JL/JT Rubicon Steel Bumper LED Light Kit LP4 w/Upfitter
This lighting and wiring setup has been tested on the Jeep JL / JT with the Rubicon Steel bumper to take the guess work out of installation! The wiring in this kit is specifically designed to run in conjunction with factory upfitter systems or sPOD / Switch Pros units. The LP4 is the smallest variant in the LP line up but maintains all of the power and features of its siblings. The LP4 features a total of 8,750 lumens and a 200 degree spread of useable LED light. This light pumps out 7,050 forward projecting lumens and 1,700 lumens of dedicated peripheral lighting courtesy of our patented Integrated Peripheral Technology (IPT). To keep your light performing at its highest potential, the LP4 integrates our proprietary Direct Ducted Cooling (DDC) technology. This feature allows air to travel through the front of the housing, over the rear heat sinks - drastically improving cooling capacity and performance. With an amber day-time running light, the LP4 will fulfill all your lighting needs.
- Satisfaction Guarantee – 30-Day Money Back Guarantee
- Limited Lifetime Warranty – Complete Purchase Protection
- uService – Replaceable Lenses And Optics
- ClearView – All The Light, Right Where You Need It
- MoistureBlock – Waterproof, Rain Proof, Submersible
- DirectSink – Direct Thermal Path Technology
- 5000K Daylight – Less Driver Fatigue, Natural Color
FITMENT:
- Jeep Gladiator 2020-2026
- Jeep Wrangler JL 2018-2026
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | LP4 Pro LED Light Pod |
| Secondary Amperage Rating (A) | 1.000 |
| Secondary Brightness (Lumens) | 1972 |
| Secondary Light Quantity | 4 LEDs |
| Secondary Lighting Technology | LED |
| Secondary Lighting Type | Integrated Peripheral Technology (IPT) |
| Secondary Wattage (W) | 15 |
| Terminal Connector | DT06-4S Deutsch |
| Terminal Type | Mating Connector |
| Universal or Specific | Universal |
| Wattage (W) | 75.900 |
| Wiring Harness Included | No |
| Amperage Rating (A) | 5.500 |
| Average Rated Life (hr.) | 49,930 |
| Backlight Amperage Rating (A) | 0.350 |
| Backlight Wattage (W) | 4.830 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Powder Coat Cast Aluminum |
| Brightness (Lumens) | 8857 |
| Description | Driving/Combo; Clear |
| Housing Color | Black |
| Housing Material | Powder Coat Cast Aluminum |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam/Day-Time Running Backlighting |
| Lighting Quantity | 4 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
Dimensions
| Depth (in.) | 3.200 |
| Height (in.) | 5.100 |
| Length (in.) | 5.100 |
| Weight (lbs.) | 2.800 |
