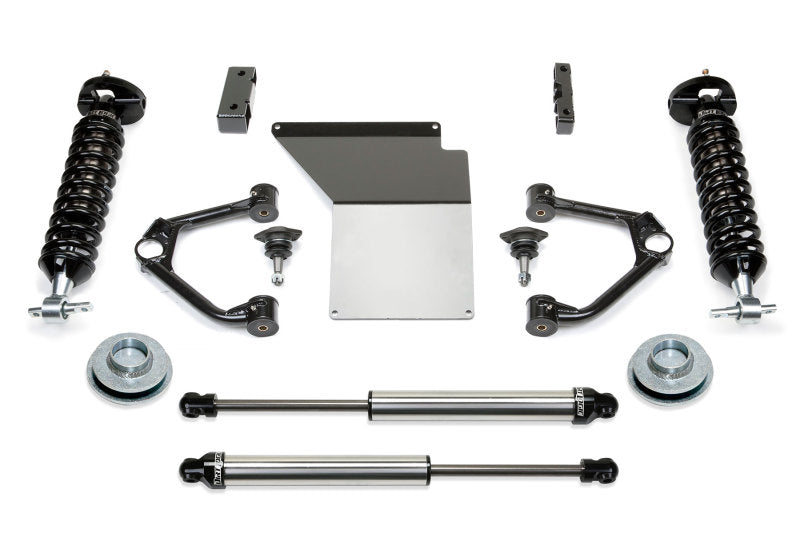

Fabtech 07-14 GM C/K1500 SUV 2WD/4WD 4in Budget UCA System w/DL 2.5 Coilovers & Rear DL Shocks

The 4" Budget System for GM C/K1500 SUV's provides a mild lift height with a supple ride for use with 33" tall tires for the value minded enthusiast. Fabtech's replacement DOM upper tubular control arms feature heavy duty extended range ball joints that provide additional strength to the front suspension. The new ball joints provide unrestricted movement throughout the suspension travel range for smooth operation. On 4WD models the front differential housing is relocated to keep CV angles proper with the new ride height while a 1/4" thick steel skid plate protects the front diff. The rear lift comes from a 1 1/2" Coil Spacer system. For increased damping this system comes with high end Dirt Logic 2.5 Coilovers for the front and Dirt Logic 2.25 shocks on the rear.
4in. BUDGET SYS W/DL 07-14 GM C/K1500 SUV
TIRE SIZE - 275/65R18 WHEEL - 18X8 W/4 1/2" BS W/MINOR TRIMMING; TIRE SIZE - 285/55R20 WHEEL - 20X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 295/70R17 WHEEL - 17X8 W/4 1/2" BS W/MINOR TRIMMING; 1. WILL NOT FIT MODELS WITH FACTORY AUTORIDE SHOCKS.; 14. CAN NOT USE OEM WHEEL AND TIRE.; 132. WILL NOT FIT 2WD SUBURBAN.

Fitment:
2007 Chevrolet Avalanche
2007 Chevrolet Suburban 1500
2007 Chevrolet Tahoe
2007 GMC Yukon
2007 GMC Yukon XL 1500
2008 Chevrolet Avalanche
2008 Chevrolet Suburban 1500
2008 Chevrolet Tahoe
2008 GMC Yukon
2008 GMC Yukon XL 1500
2009 Chevrolet Avalanche
2009 Chevrolet Suburban 1500
2009 Chevrolet Tahoe
2009 GMC Yukon
2009 GMC Yukon XL 1500
2010 Chevrolet Avalanche
2010 Chevrolet Suburban 1500
2010 Chevrolet Tahoe
2010 GMC Yukon
2010 GMC Yukon XL 1500
2011 Chevrolet Avalanche
2011 Chevrolet Suburban 1500
2011 Chevrolet Tahoe
2011 GMC Yukon
2011 GMC Yukon XL 1500
2012 Chevrolet Avalanche
2012 Chevrolet Suburban 1500
2012 Chevrolet Tahoe
2012 GMC Yukon
2012 GMC Yukon XL 1500
2013 Chevrolet Avalanche
2013 Chevrolet Suburban 1500
2013 Chevrolet Tahoe
2013 GMC Yukon
2013 GMC Yukon XL 1500
2014 Chevrolet Suburban 1500
2014 Chevrolet Tahoe
2014 GMC Yukon
2014 GMC Yukon XL 1500
