Fabtech 07-18 GM K1500 4in Uniball UCA System w/Rear Perf. Shocks

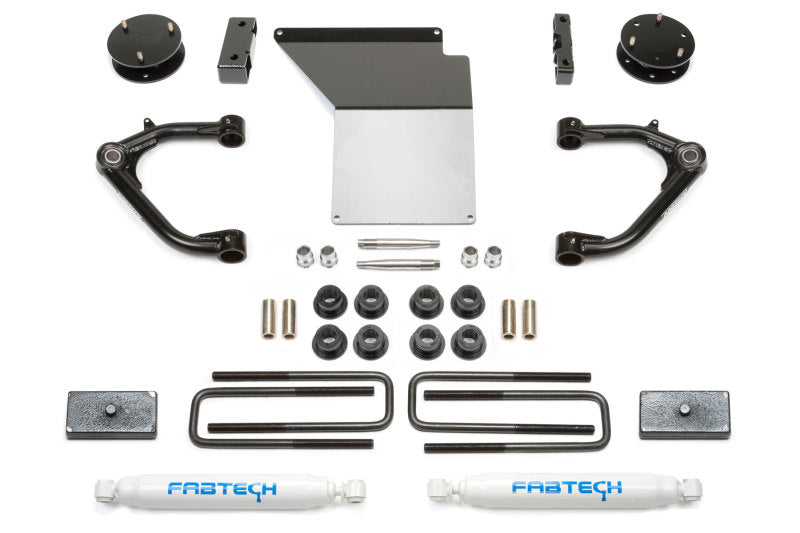

This system offers a mild lift height with easy installation for clearance of 33 tall tires on 2014 C/K1500s w/ factory Steel suspension. Lift is accomplished by utilizing the factory front Coilover shocks with steel spacer system that helps retain the stock ride of the front suspension. The stock upper control arms are replaced with high quality tubular Uniball arms that allow unrestricted movement throughout the travel range. The arms are constructed of top quality material including .120 wall 4130 Chromoly tubing with a 1.50 OD and 1 FK Stainless PTFE Uniballs. These arms are the best on the market for aggressive offroad driving in harsh conditions. The front differential is relocated to keep CV angles proper with the new lift height while a 1/4 thick steel skid plate provides protection against offroad obstacles. Rear lift is accomplished with 1 1/2 rear lift block and u-bolts to help level the stance of the vehicles. Performance rear shock absorbers replace the stock units for increased damping.
4in. UNIBALL UCA SYS W/PERF SHKS 07-18 GM K1500 P/U
TIRE SIZE - 33/12.50R17 WHEEL - 17X8 W/4 1/2" BS W/MINOR TRIMMING; TIRE SIZE - 275/65R18 WHEEL - 18X8 W/4 1/2" BS W/MINOR TRIMMING; TIRE SIZE - 295/55R20 WHEEL - 20X9 W/5" BS W/MINOR TRIMMING; 1. WILL NOT FIT MODELS WITH FACTORY AUTORIDE SHOCKS.; 8. WILL NOT FIT ALL WHEEL DRIVE MODELS.; 14. CAN NOT USE OEM WHEEL AND TIRE.; 17. DOES NOT FIT STANDARD CAB.; 128. FITS MODELS WITH FACTORY FORGED BLACK STEEL UPPER CONTROL ARM.

Fitment:
2007 Chevrolet Silverado 1500
2007 GMC Sierra 1500
2008 Chevrolet Silverado 1500
2008 GMC Sierra 1500
2009 Chevrolet Silverado 1500
2009 GMC Sierra 1500
2010 Chevrolet Silverado 1500
2010 GMC Sierra 1500
2011 Chevrolet Silverado 1500
2011 GMC Sierra 1500
2012 Chevrolet Silverado 1500
2012 GMC Sierra 1500
2013 Chevrolet Silverado 1500
2013 GMC Sierra 1500
2014 Chevrolet Silverado 1500
2014 GMC Sierra 1500
2015 Chevrolet Silverado 1500
2015 GMC Sierra 1500
2016 Chevrolet Silverado 1500
2016 GMC Sierra 1500
2017 Chevrolet Silverado 1500
2017 GMC Sierra 1500
2018 Chevrolet Silverado 1500
2018 GMC Sierra 1500
