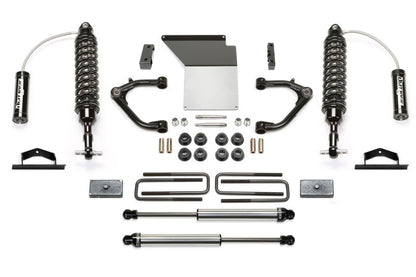

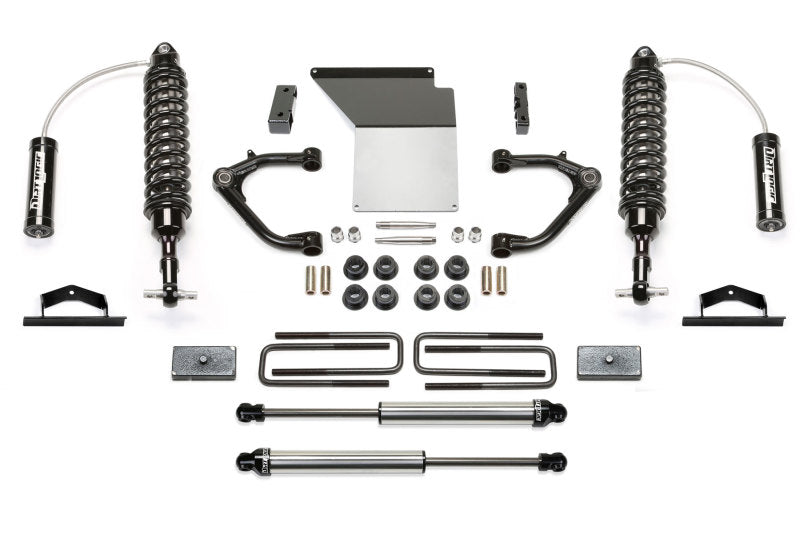

Fabtech 07-18 GM K1500 w/OE Forged UCA 3.5in UCA System w/DL 2.5 Resi Coilovers & Rear DL Shocks

As an upgrade to our popular 4'' Budget System we offer the system with our Uniball Upper Control Arms. The Uniball Upper Control Arms feature .120'' wall 4130 Chromoly tubing with a 1.50'' OD and 1'' FK Stainless PTFE Uniballs for unsurpassed strength. The system also includes front differential drop brackets, a 1/4'' thick steel skid diff plate along with 1 1/2'' rear lift block and u-bolts. The 4'' System is available with our high end Dirt Logic 2.5 Coilovers for 10'' of front wheel travel and Dirt Logic 2.25 rear shocks for aggressive offroad driving. Uniball Upper Control Arms are available separately as an upgrade to stock, previously installed Fabtech'suspensions or other aftermarket suspension systems.
4in. UNIBALL UCA SYS W/DL 2.5/2.25 07-18 GM K1500 W/OE FORG STL UCA
TIRE SIZE - 33/12.50R17 WHEEL - 17X8 W/4 1/2" BS W/MINOR TRIMMING; TIRE SIZE - 275/65R18 WHEEL - 18X8 W/4 1/2" BS W/MINOR TRIMMING; TIRE SIZE - 295/55R20 WHEEL - 20X9 W/5" BS W/MINOR TRIMMING

Fitment:
2007 Chevrolet Silverado 1500
2007 Chevrolet Silverado 1500 Classic
2007 Chevrolet Silverado 1500 HD Classic
2007 GMC Sierra 1500
2007 GMC Sierra 1500 Classic
2007 GMC Sierra 1500 HD Classic
2008 Chevrolet Silverado 1500
2008 GMC Sierra 1500
2009 Chevrolet Silverado 1500
2009 GMC Sierra 1500
2010 Chevrolet Silverado 1500
2010 GMC Sierra 1500
2011 Chevrolet Silverado 1500
2011 GMC Sierra 1500
2012 Chevrolet Silverado 1500
2012 GMC Sierra 1500
2013 Chevrolet Silverado 1500
2013 GMC Sierra 1500
2014 Chevrolet Silverado 1500
2014 GMC Sierra 1500
2015 Chevrolet Silverado 1500
2015 GMC Sierra 1500
2016 Chevrolet Silverado 1500
2016 GMC Sierra 1500
2017 Chevrolet Silverado 1500
2017 GMC Sierra 1500
2018 Chevrolet Silverado 1500
2018 GMC Sierra 1500
