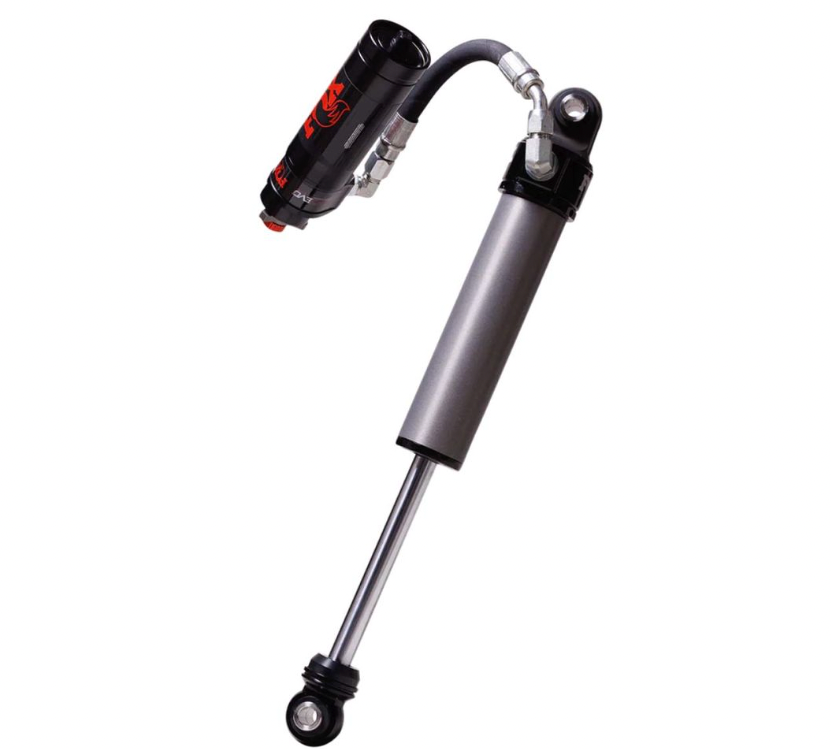

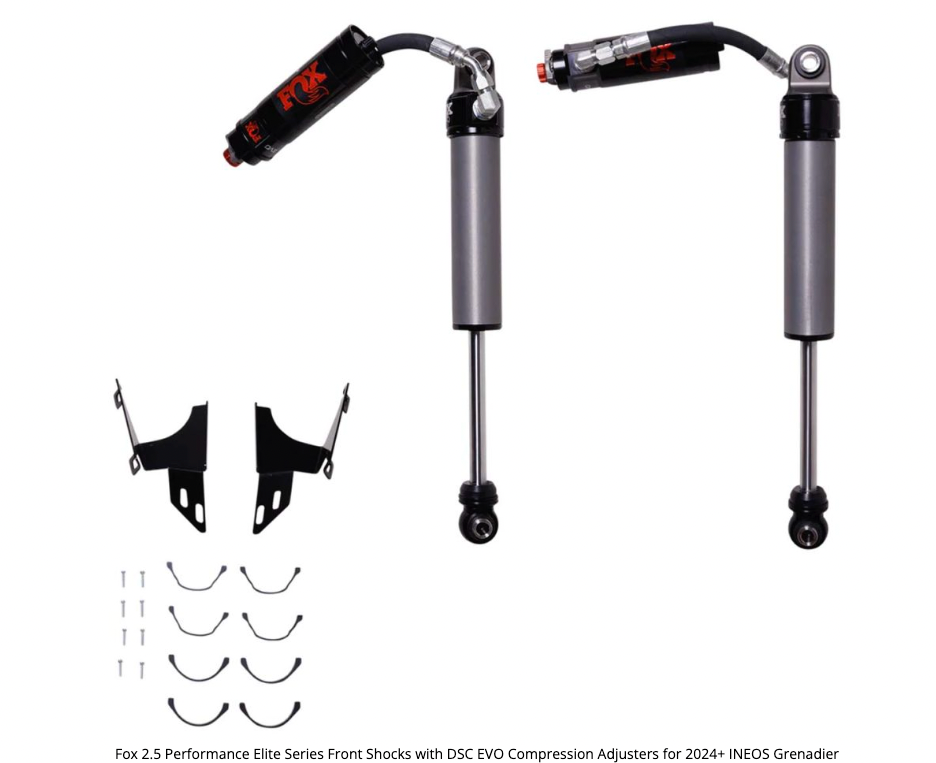

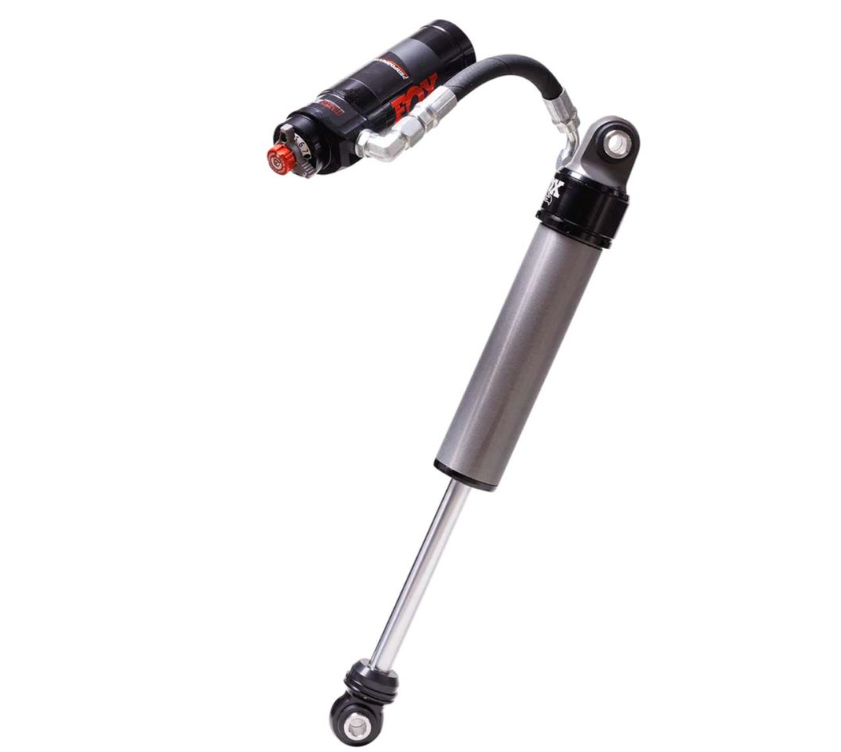

FOX 2.5 PES DSC EVO Front Shocks | 2024+ Ineos Grenadier

Kit: 24 C Ineos Grenadier Front 2.5 Truck Pes R/R Dsc Evo 02 In Lift

FOX Performance Elite Series 2.5 shocks featuring DSC EVO are a bolt-on solution tuned for the INEOS Grenadier. Optimize vehicle performance without compromising OEM reliability and vehicle behavior.

Type III anodization prevents corrosion and wear of the 2.5-inch aluminum bodies. External reservoirs increase oil capacity, allow additional shock stroke to maintain available travel, and decrease the harshness associated with nitrogen ramp-up. Each reservoir features a Dual Speed Compression Evolution (DSC EVO) adjuster strategically mounted to eliminate interference with aggressive tires at full lock.

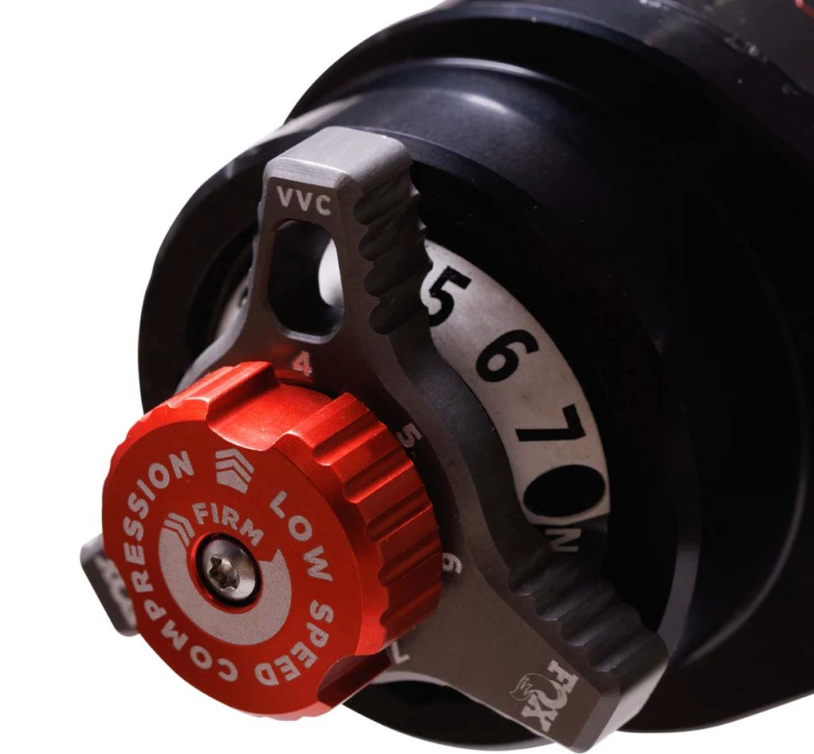

DSC EVO features Variable Valve Control (VVC) on the high-speed circuit. VVC doesn't add preload to the shim stack to adjust high-speed damping. The result is more comfort, independent high and low-speed circuits, and increased capacity for big hits. Add clicks of highspeed compression without sacrificing small-bump sensitivity.

Performance Elite shocks with DSC EVO provide versatility without compromise to navigate rough terrain and improve on-road manners while remaining comfortable and in control.

Features:

• 2.5" impact-extruded and CNC-machined 6061-T6 Type III anodized aluminum body
• 7/8" hard chromed steel shafts
• Vehicle-specific tuning maximizes performance
• Redundant sealing pack system: main seal, wiper seal, scraper seal
• External reservoir, with DSC EVO adjuster

Specifications:

• TRAVEL: 8.38"
• BODY: 2.5" impact extruded and CNC machined 6061-T6 hard anodized aluminum body resists rust over time
• BODY PLATING: Hard-anodized for a durable finish
• COMPONENTS: Black-anodized, CNC-machined 6061-T6 billet aluminum
• SHAFT: 7/8" hard chrome plated heat-treated alloy steel
• PISTON: Race-developed high-flow piston design
• VALVING: Application specific valving to maximize performance
• SEALS: Redundant sealing pack system main seal, wiper seal, scraper seal
• BEARINGS: PTFE-lined, heat-treated, alloy steel spherical
• EXTENDED LENGTH: 23.22"
• COMPRESSED LENGTH: 14.84"
• TOP MOUNT: Eyelet
• BOTTOM MOUNT: Eyelet
• FITMENT NOTES: Includes Reservoir Mounting Bracket
