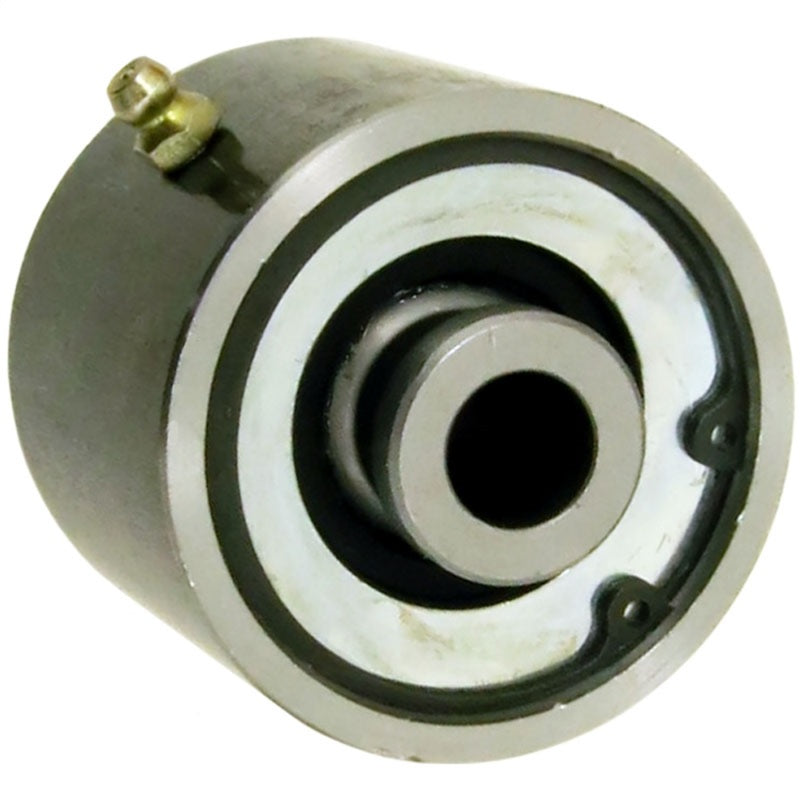

RockJock 2021+ Bronco Rear Trac Bar Johnny Joint Rod End 2 1/2in Narrow Weld-On 55mm x 16mm Ball

RockJocks narrow style weld-on Johnny Joints for fabricators and suspension system builders offer up to 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. The 2 1/2 in. narrow style outer shell is weldable CNC machined DOM tubing that is fitted with a zerk fitting for greasing. This specific joints 55mm mounting width ball with a 16mm thru bolt hole is designed to fit the axle side of the 2021 and up Broncos rear trac bar.
Johnny Joint® Rod End; 2.5 in.; Narrow Weld-On; 55 mm x 16 mm Ball; Externally Greased; Rear Trac Bar;
