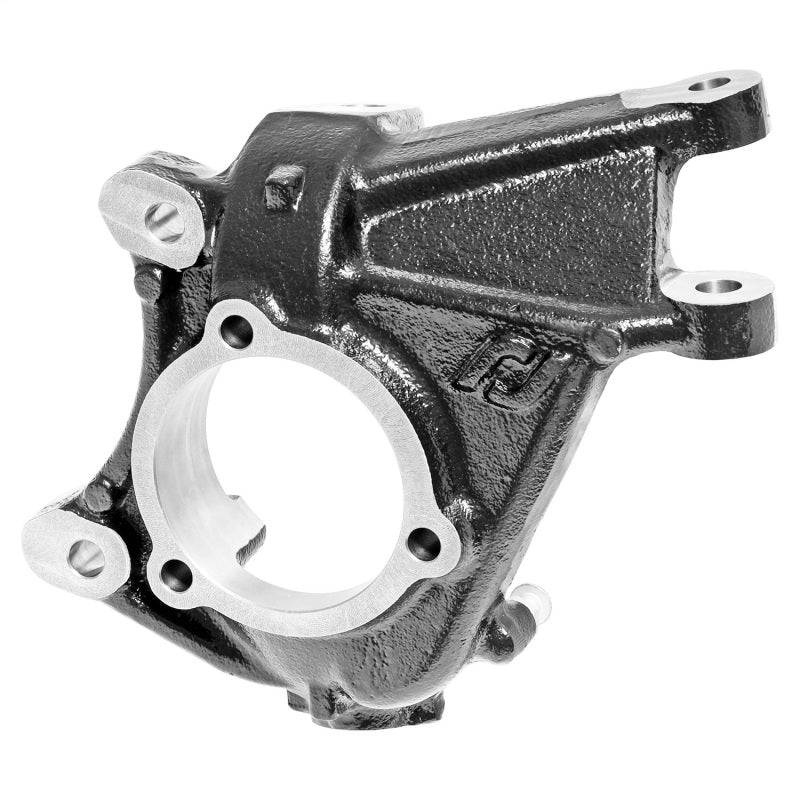

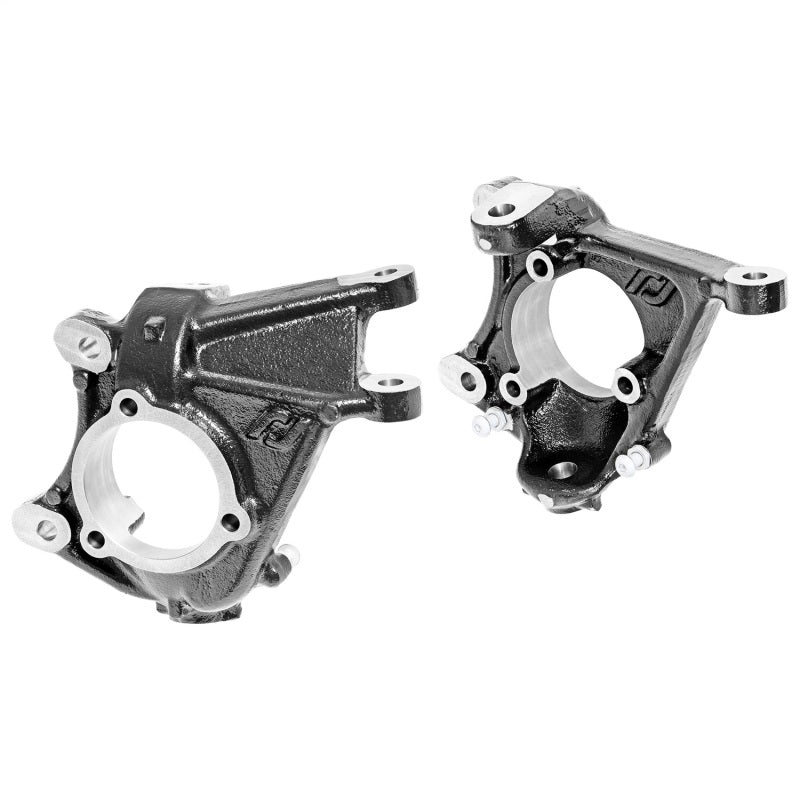

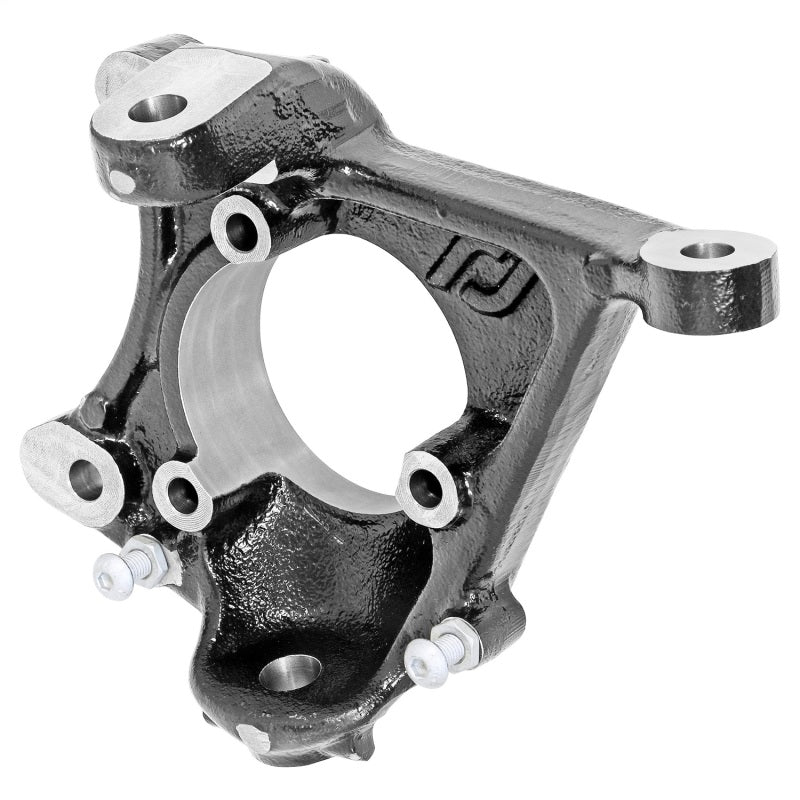

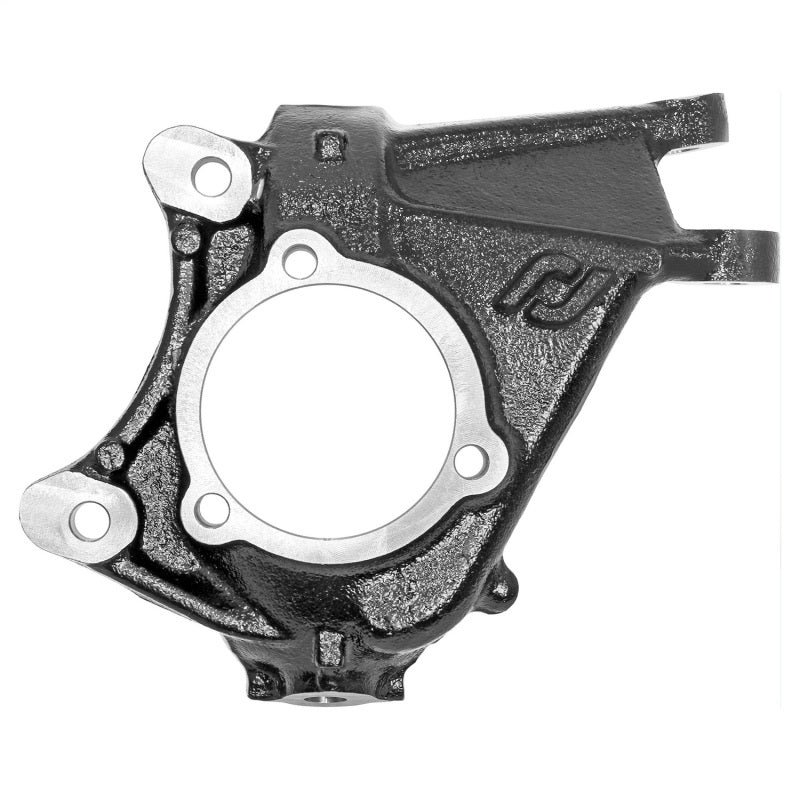

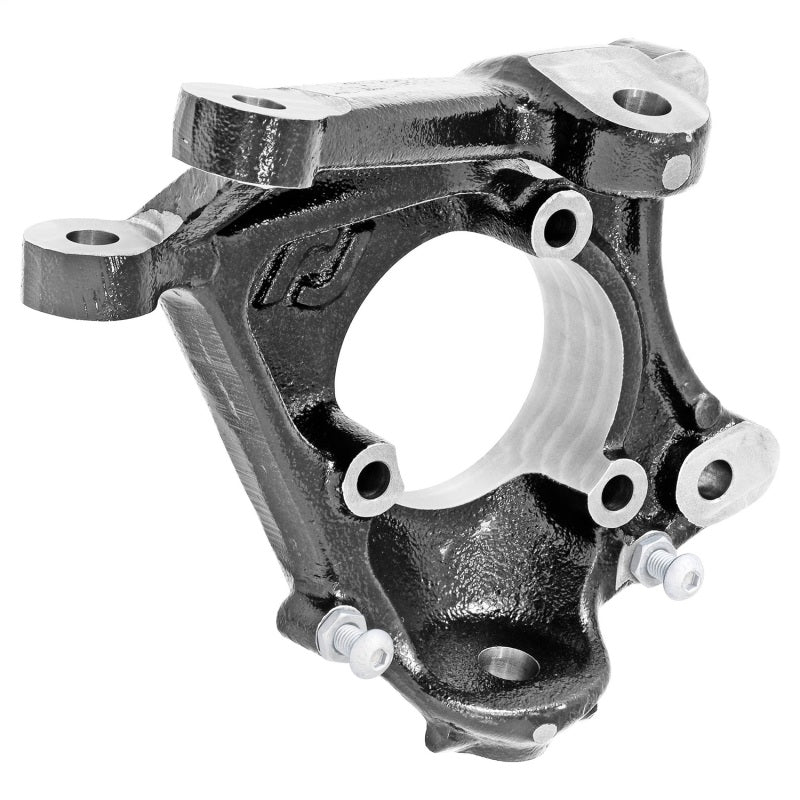

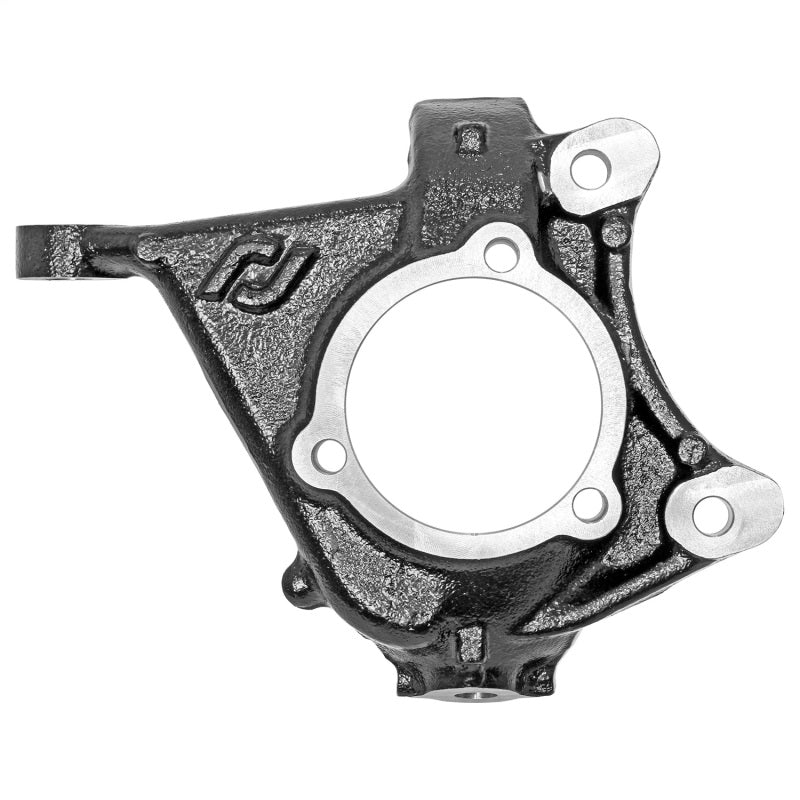

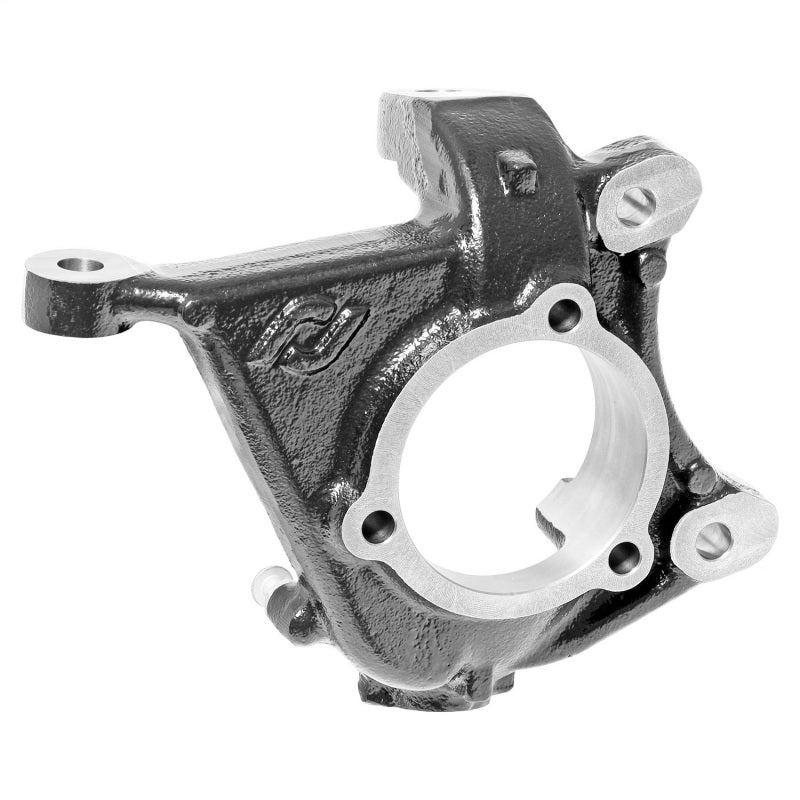

RockJock JK Wrangler Unlimited 4Dr Currectlync High Steer Knuckles 2-3/4in Tie Rod & Drag Link Lift

RockJock's High Steer Knuckles for JK Wrangler and Unlimited vehicles are a game changer! Simply installing these knuckles raises both your tie rod and your drag link 2 3/4 in.! These knuckles, for use on factory axles or axles that retain factory inner C-knuckles, are intended for use with RockJock's other high steer components, to give you a package that provides all the necessary components to accommodate the higher steering location, adjust all geometry points and allow you to easily install a hydraulic assist steering ram, or to reinstall your stabilizer shock! Knuckles are manufactured to greater than OEM standards in every way. Features include premium iron castings, gloss black finish and precise machining for a component that installs just like factory. Additionally, provided are extra threaded steering stop bolt holes ahead of the axle to allow for a second set of stops to be added, giving you firm steering lock stops on both wheels at all times, easing strain on other components. For best results, it is highly recommended that these knuckles be used in conjunction with one of RockJock's knuckle kits that include all of the other components to make this installation easy. Their RJ-430000-101 kit includes a forged, high articulation Drag Link, a 42mm chromoly Tie Rod, a JL/JT Trac Bar as well as the bracket and clamp kits to allow you to install a hydraulic assist steering ram. They also offer their RJ-430001-101 and RJ-430001-103 kits that include the same Drag Link and Tie Rod, as well as the bracket and clamp kits to allow you to reinstall your steering stabilizer shock at a much higher, protected height. Kits that retain the steering stabilizer shock are available with or without their RJ-9120FJLF forged, organically shaped front trac bar. Use of their RJ-107101-101 adjustable front bump stop kit is strongly encouraged to allow for maximum up-travel, as engineered.
Currectlync® High Steer Kit; Incl. Tie Rod And 2.75 in. Drag Link;

• A Minimum Of A 2.2 in. Bump Stop Extension Is Mandatory To Keep Components From Crashing Under Full Articulation


• These Knuckles Were Designed In Conjunction With And Intended For Use With Our JK-9704 Steering System


• For Use On Any Factory JK Dana 30 Or Dana 44 Front Differential Or Any Aftermarket Replacement Axle


• Intended To Be Used With A Minimum Of A 17 in. Diameter Wheel And Up To A 6 in. Wheel Backspacing


• Recommend Purchasing Them In One Of Our Kits That Provide The Balance Of The Components


• Retains Factory Ball Joints; Unit Bearings; Outer Axles; Brakes And Dust Shields


• Right Side High Steer Steering Knuckle


• Left Side High Steer Steering Knuckle


• 4 Steering Stop Bolt Jam Nuts


• 4 Ball Joint Cotter Pins


• 4 Steering Stop Bolts

Fitment:
2007 Jeep Wrangler
2008 Jeep Wrangler
2009 Jeep Wrangler
2010 Jeep Wrangler
2011 Jeep Wrangler
2012 Jeep Wrangler
2013 Jeep Wrangler
2014 Jeep Wrangler
2015 Jeep Wrangler
2016 Jeep Wrangler
2017 Jeep Wrangler
2018 Jeep Wrangler JK
