RockJock Johnny Joint 2in Forged Rod End 3/4in RH Thread 2in x .4375in Ball

Out of stock

$98.99

Fully secure checkout
Trusted by thousands
0% Financing Available*

Sorry, it's out of stock.

But we can let you know when it's back in.

Shop safely

Secure your shopping experience with various safe and trusted payment methods.

Sold out

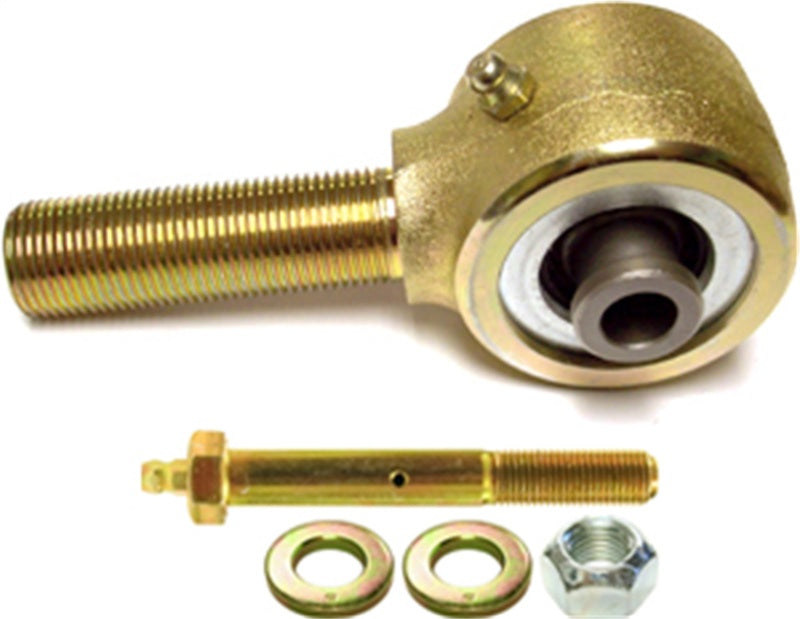

RockJocks forged Johnny Joints for fabricators and suspension system builders offer 30 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint is a 2 in. diameter, fitted with a zerk fitting for greasing, 2 1/4 in. of 3/4 in.-16 right hand threads on the shank, and a 2 in. mounting width ball with a .4375 in. thru bolt hole. Finished in gold zinc plating. This unit also includes a 7/16 in. greasable bolt for external greasing of the joint.
Johnny Joint® Rod End; 2 in.; 2 in. Mounting Width; 0.75 in.-16 RH Threaded Shank; Externally Greased; w/Greasable Bolt; 0.4375 in. Thru Bolt Hole; Each;
